uPVC Column Pipes
Salient Feature
- Low maintenance and long life
- No contamination because of corrosion or incrustation
- High tensile load capability
- Leak proof joints
- High impact strength
- Low cost compared to C.I and G.l pipes
- Smooth bore that offers excellent flow properties
- Easy in installation
- Economically Satisfied
- Minimum frictional losses thus saving power
- 25% higher discharge charge than G.I pipes
- Non conductor of Low thermal conductivity and electricity
Applications
- Water rising for submersible pump set
- It is commonly used as replacement on the place for MS, ERW, GI, HDPE and stainless steel
Name
:
uPVC Column Pipes
Range
:
1" to 4" Outer Diameter (25mm to 100mm Nominal Diameter)
Colour
:
White
Length
:
Available in 3 & meter
Types
:
Available in Three grades
Some important features of our column pipes, couplers and its accessories
- Square threads of pipes as well as coupler gives very high tensile load capacity, high izod impact and easy fitment, re-fitment and longer life
- The rubber dampeners, silent system provides leak proof fittings and also absorbs the vibration of the pump which results in longer life of motor and pump bearing.
- Our square threads of pipes as well as coupler are of best designed and manufactured in CNC machines in order to provide best accuracy and quality.
- The rubber ring like step ring, L-ring, O-ring & Seal ring are of natural rubber and best to absorb the shock of motor
- Our thick and thin portion of the pipes has been so developed in order to absorb the full torque produced due to motor thus resulting long life.
- The technically developed adapters have 11 TPI metric threads at one end which fits into motor and square threads at one end which fits into column pipes.

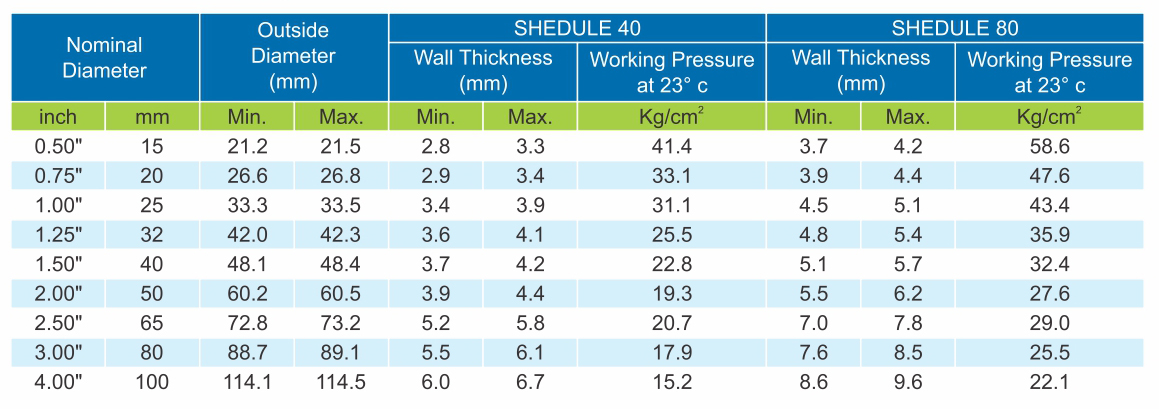

Technical Parameters
